1" G 304 Stainless Steel underfloor heating manifolds

Ask Lasest Price
Brand Name :	ECOICE
Certification :	CE
Price :	USD50-200/PC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	500000 PC PER MONTH
Delivery Time :	10-15 DAYS

Add to Cart

Product Details
Company Profile

1" G 304 Stainless Steel underfloor heating manifolds

304 Stainless Steel Floor Heating Manifolds for floor heating system usage

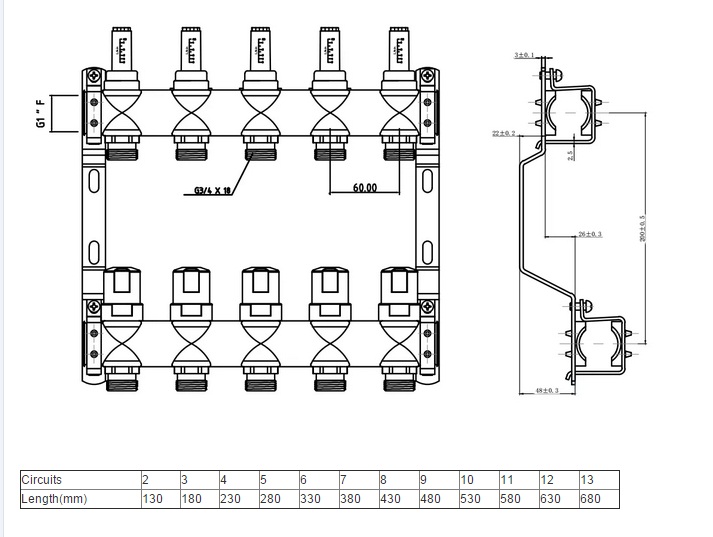

Detailed specification

Model no:	HL-303-N3
Main tube size:	1" F G
No. of circuits:	2--13 circuits
Hole distance:	60mm
Flow meter rate:	0--5 L/m.
Connectors:	*for 162.0mm or 202.0mm pipes*
Brackets:	200mm or 210mm
Application for actuator:	*M301.5mm**
Working pressure:	1.0 Mpa

Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.

Delivery:

2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min

2-12pcs connecting fittings 3/4" with euro-cone

1 pcs special plug 1" on primary side

1 pcs female thread 1" on primary side

Return:

1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)

2-12pcs connecting fittings 3/4" with euro-cone

1 pcs special plug 1" on primary side

1 pcs female thread 1" on primary side

1 pair Mounting brackets: 210mm or 200mm centering according to customers' request.

Pressure tested according to DIN 3230, packed in cardbox

(manifold branches assembled)

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-15 days if the goods are in stock. If the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us directly.

1" G 304 Stainless Steel underfloor heating manifolds
